Product Information

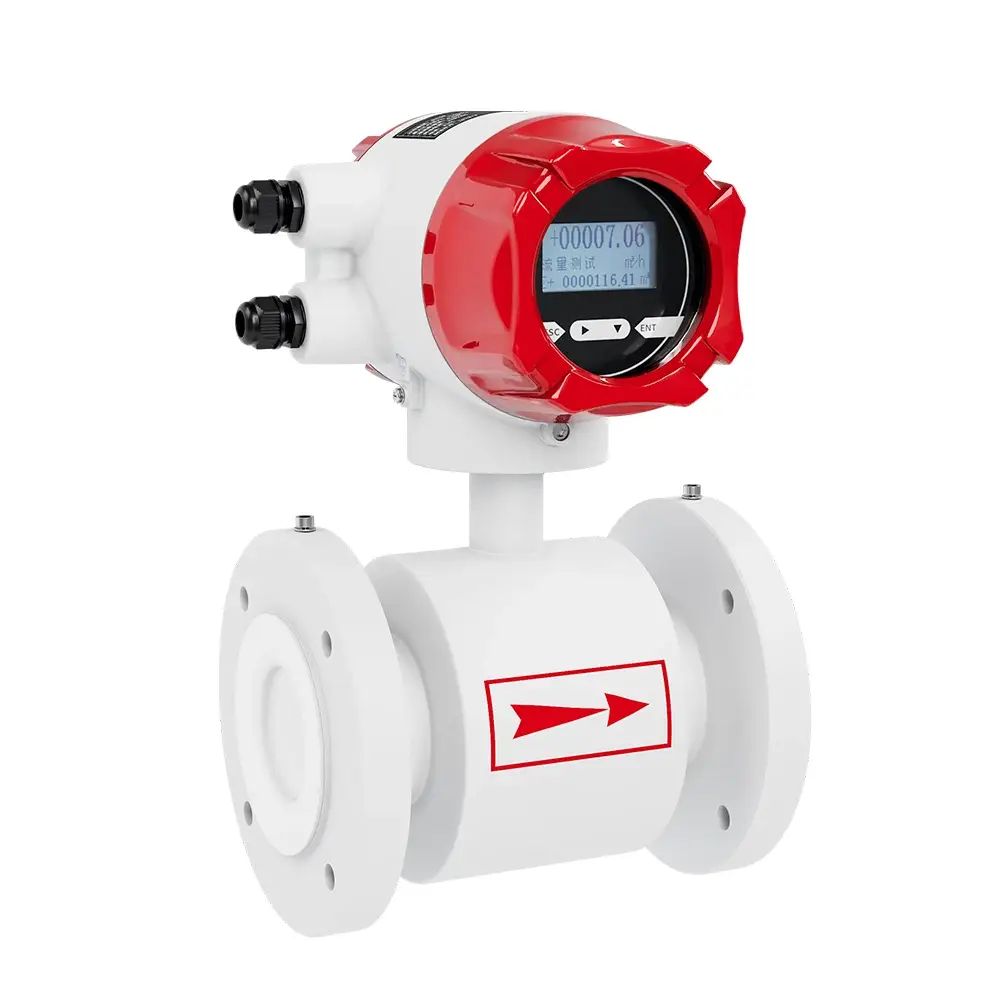

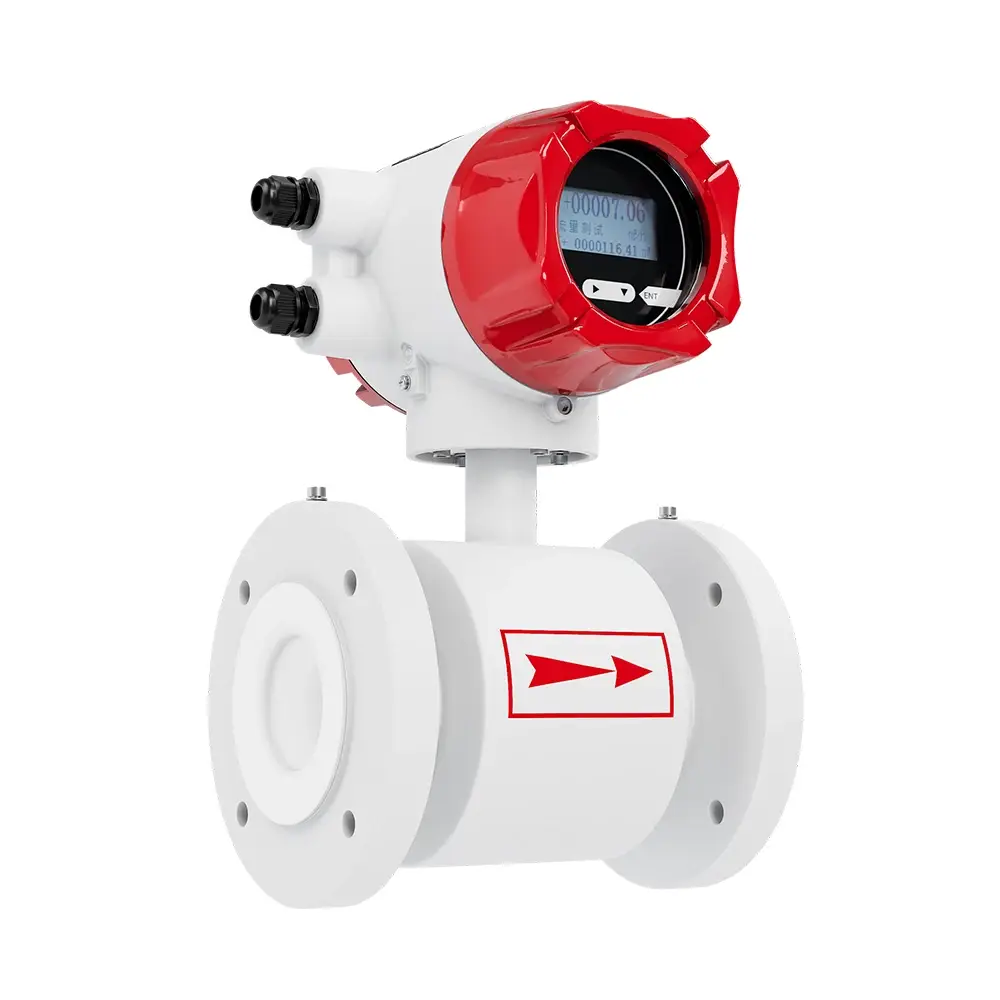

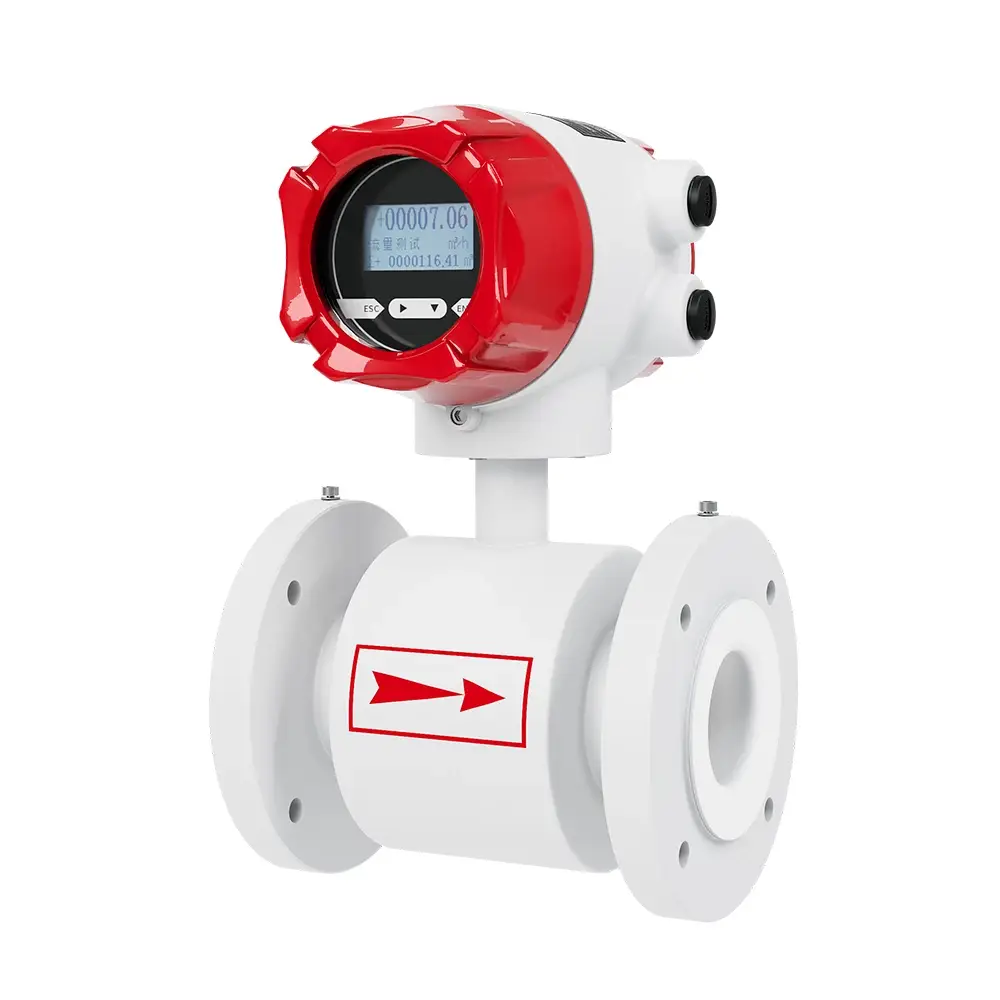

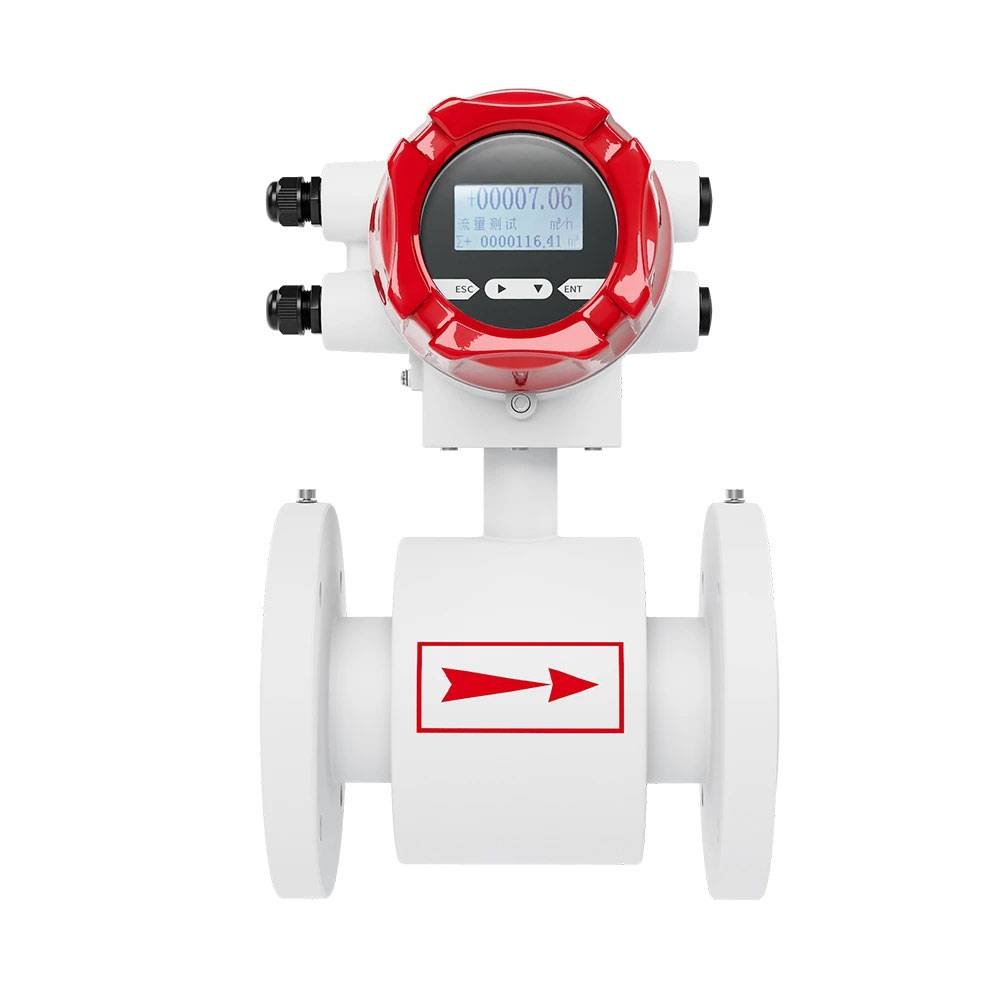

MEJ-FMC400 Low Conductivity Electromagnetic Flow Meter

Accuracy: Measurement value±0.5%(Flow velocity 0.5m/s~5m/s)

Direct measured variables ：Flow velocity

Calculated measured variables ：Volume flow , mass flow

Velocity of flow：Typically Velocity of flow：0.5m/s~5m/s

Note：If there are differences in the selection of individual specifications, the label shall prevail, and high-voltage can be customized

Electromagnetic flowmeter has become a powerful tool for industrial flow measurement due to its scientific working principle, outstanding performance advantages, and wide application fields. With the continuous improvement of industrial automation and technological innovation, electromagnetic flowmeters will continue to be upgraded, injecting precise and efficient power into the development of more industries and playing a more important role in future industrial development.

Specifications

Product	Electronic water meter
Model	MEJOR200
Diameter nominal	DN15~DN1000
Nominal pressure	DN15 – DN250, PN ≤1.6MPa
Nominal pressure	DN300 – DN1000, PN ≤1.0MPa
Accuracy	Class 2(Please see datasheet for details)
Repetitiveness	0.16%
Liner material	Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
Electrode material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature	Neoprene: -10…+70℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃
Power supply	220VAC, 24VDC
Structure type	Compact type, Remote type
Ingress protection	IP65, IP68(remote type only)
Product standard	JB/T 9248-2015

MEJ-FMC400

Electromagnetic
Flowmeter
