If you’ve ever watched a Horizontal Directional Drilling (HDD) operation, you’ll see an impressive array of heavy machinery—the drill rig, pipe handlers, and mud systems—all working in concert. But among these giants, there’s a smaller, yet utterly indispensable tool that often doesn’t get the spotlight: the breakout tongs.

For those new to the industry or looking to understand the nuts and bolts of HDD, you might wonder: What exactly are breakout tongs, and what’s their purpose in a non-dig, trenchless operation?

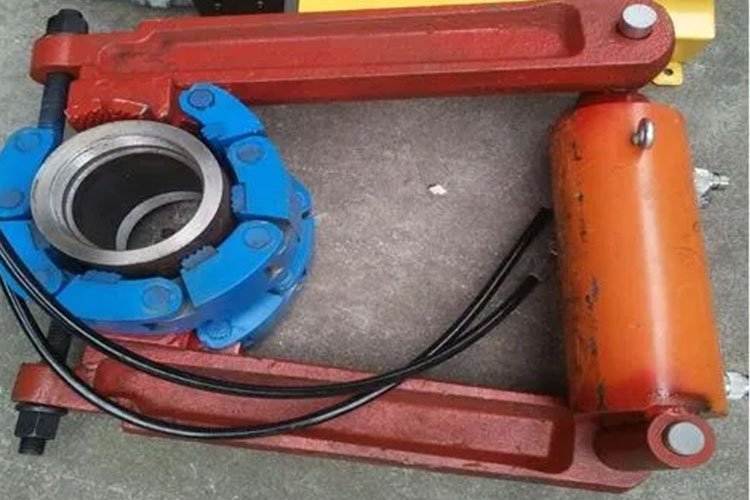

In simple terms, breakout tongs are powerful, hydraulically-actuated wrenches used to make up (tighten) and break out (loosen) the threaded connections between drill pipe segments. While the drill rig provides the rotational force to drill, the breakout tongs are responsible for the critical task of assembling and disassembling the drill string itself.

Here’s a deeper look at why they are so vital:

Building and Breaking Down the Drill String: The Core Function

An HDD bore can stretch for miles. To achieve this, crews add sections of drill pipe one by one as the bore progresses. Each connection must be torqued to precise specifications—tight enough to prevent leaks or separation under immense pressure, but not so tight as to damage the threads.

When retrieving the drill string (pullback), the process is reversed. Breakout tongs provide the controlled, brute force needed for this repetitive, high-stakes task. They are the key to a secure, continuous drill string, which is the literal backbone of the entire operation.

Maintaining the Integrity of the Bore

A failed connection is a nightmare scenario. It can lead to a “drop” (leaving tools underground), drilling fluid leaks, or a complete halt to the project. Breakout tongs ensure every joint is properly made.

Modern tongs often feature integrated torque gauges, allowing operators to apply the exact manufacturer-recommended torque. This precision prevents weak links and safeguards the multi-million-dollar investment in the bore and the environment.

Enhancing Safety

Before powered tongs, this back-breaking work was done manually with chain tongs or sledgehammers—a dangerous and labor-intensive process. Breakout tongs dramatically improve crew safety. Operators can engage and disengage connections from a controlled position, away from the pinch points and swing areas of the moving pipe. This reduces the risk of hand injuries, strains, and strikes.

Boosting Efficiency and Speed

Time is money on any job site. Breakout tongs, especially fully automated or rod-handler-mounted systems, can make or break a connection in a fraction of the time it takes to do it manually.

This speed is critical during pullback, when the window for successfully installing the product pipe is open. Faster pipe handling means reduced overall project time and lower costs.

In Conclusion: More Than Just a Wrench

While they might look like just another piece of iron on the site, breakout tongs are a fundamental component of modern HDD technology. They are the guardians of connection integrity, champions of crew safety, and enablers of project efficiency. The next time you see a trenchless project successfully crossing under a river or highway, remember that the humble breakout tong played a pivotal role in building that invisible, underground path.

So, while the drill rig gets the glory, it’s the breakout tongs that ensure every piece of the puzzle is locked securely in place, making the entire non-dig miracle possible.
