In the world of Horizontal Directional Drilling (HDD), we often celebrate the big-ticket items: the powerful drill rigs, the sophisticated tracking and guidance systems, and the complex mixing systems for drilling fluid. But behind every successful bore, there’s a critical piece of equipment working tirelessly on the site—the breakout tongs.

This robust tool might not get the spotlight, but its role is fundamental. For any HDD contractor, understanding and utilizing breakout tongs effectively is the difference between a smooth, efficient drilling operation and a costly, time-consuming stall.

What Exactly Are Breakout Tongs?

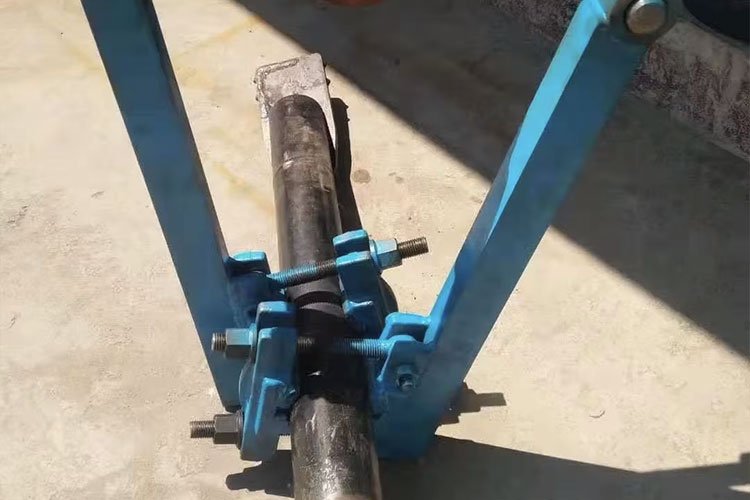

At its core, breakout tongs are a heavy-duty, hydraulically-powered tool designed for one primary, high-stakes job: connecting and disconnecting the threaded rods of the drill string.

An HDD operation involves pushing or rotating a drill string—a long series of connected steel rods—through the ground to create a pilot bore. This drill string must transmit torque, thrust, and pullback force from the rig to the downhole tool assembly. Each rod section must be screwed together with immense precision and torque to withstand these extreme forces.

The Critical Role of Breakout Tongs in the HDD Process

So, where do the breakout tongs come in? Their importance is felt throughout the entire drilling process:

1. Making the Connection: Building the Drill String
As the bore progresses, new drill rods are continuously added to the string. Each new rod must be screwed into the one preceding it. Breakout tongs, with their powerful hydraulic grip and rotational force, are used to securely tighten each connection to the rig’s specified torque. This ensures a solid, leak-free link that can handle the immense torque and pressure required for drilling.

2. Breaking the Connection: Tripping Out
During back-reaming and product pullback, or when the entire drill string needs to be retrieved, the process is reversed. Each rod must be unscrewed as it emerges from the bore.

This is where breakout tongs earn their name. After being subjected to immense forces, mud, and debris underground, the threaded connections between rods are often “frozen” or “galled” – incredibly tight and difficult to loosen. The sheer power of the breakout tongs is needed to “break out” these connections safely and efficiently, allowing for the rapid disassembly of the drill string.

Why Not Just Use Any Large Wrench?

Attempting this job with inadequate tools is a recipe for disaster in an HDD operation. The consequences of not using proper breakout tongs include:

• Project Delays: Struggling with stuck connections for hours burns valuable time and halts the entire operation.
• Safety Hazards: Using improvised methods like “cheater bars” can lead to violent slippage, snapped tools, and serious injury to crew members from sudden releases of stored torsional energy.
• Rod and Thread Damage: Improper tools can damage the precision threads of the expensive drill rods, leading to fluid leaks, connection failures, and costly replacements.
• Connection Failure: A poorly torqued connection can fail mid-bore, potentially leaving part of the drill string stranded underground—a catastrophic and expensive situation.

The Bottom Line: Efficiency and Safety

In the fast-paced, cost-sensitive environment of HDD, efficiency is profit. Breakout tongs are a force multiplier. They enable crews to make and break connections swiftly and reliably, keeping the project on schedule and protecting the integrity of the drill string.

More importantly, they are a vital safety tool. By providing a controlled, mechanical method for handling high-torque connections, they protect workers from the extreme dangers associated with manual, high-force operations, creating a safer and more predictable worksite.

Conclusion

While they may operate in the shadow of the massive drill rig, breakout tongs are indispensable in the HDD toolkit. They are the strong, reliable hands that build and dismantle the critical link between the rig and the borehole.

For any serious HDD contractor, investing in a high-quality, well-maintained set of breakout tongs isn’t just a smart choice—it’s a non-negotiable one for ensuring project success, protecting valuable assets, and, most critically, safeguarding their crew.
