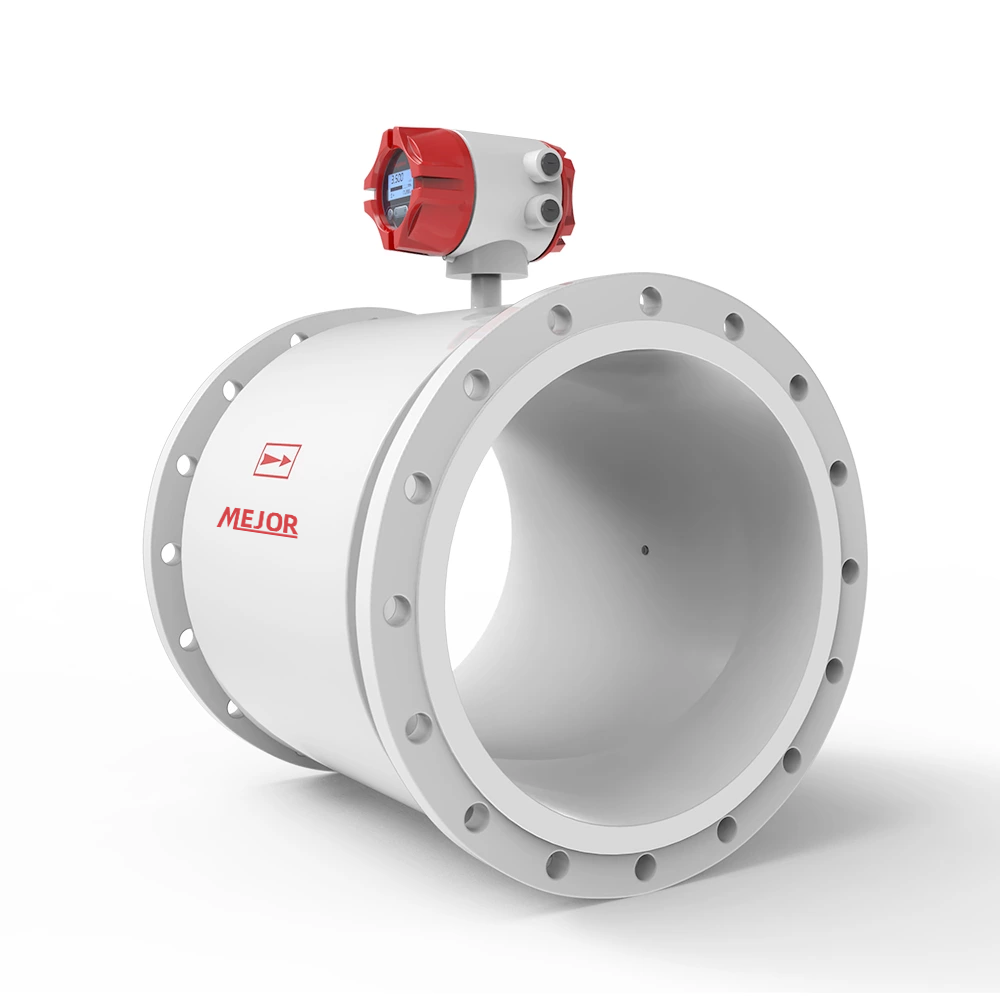

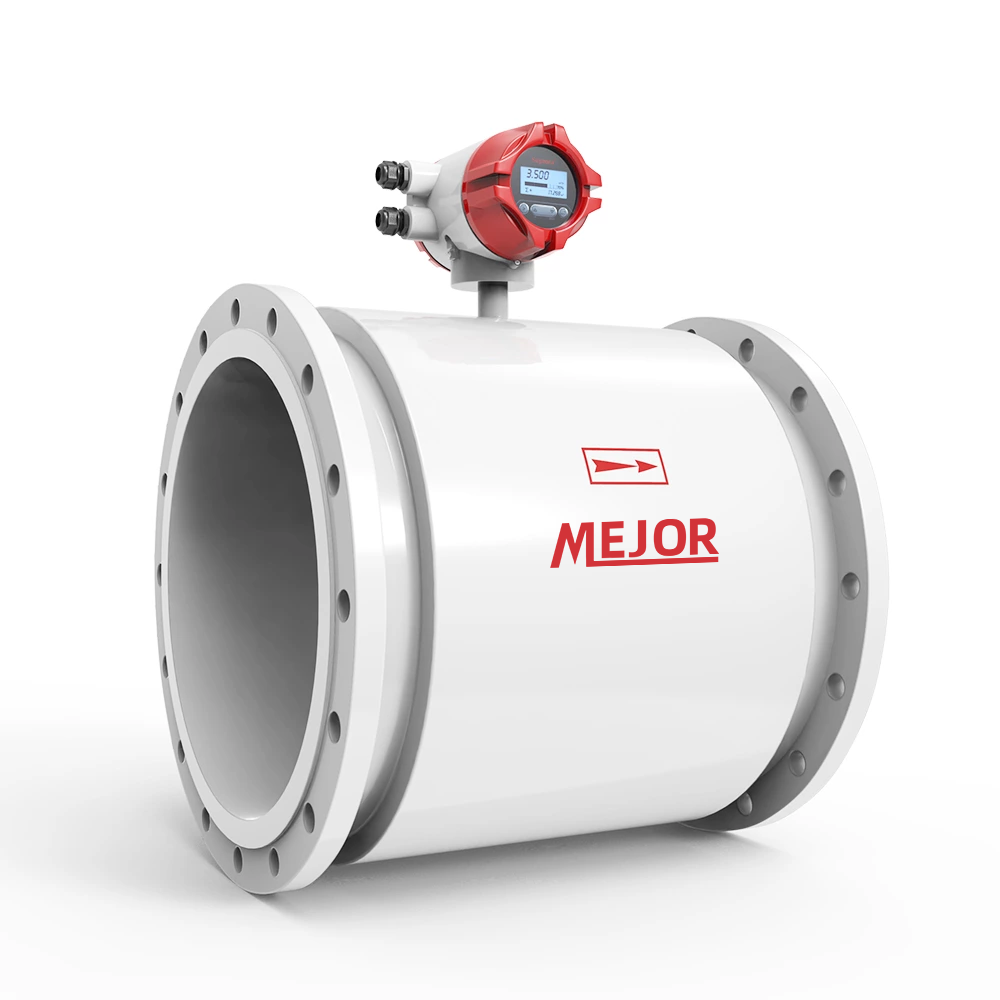

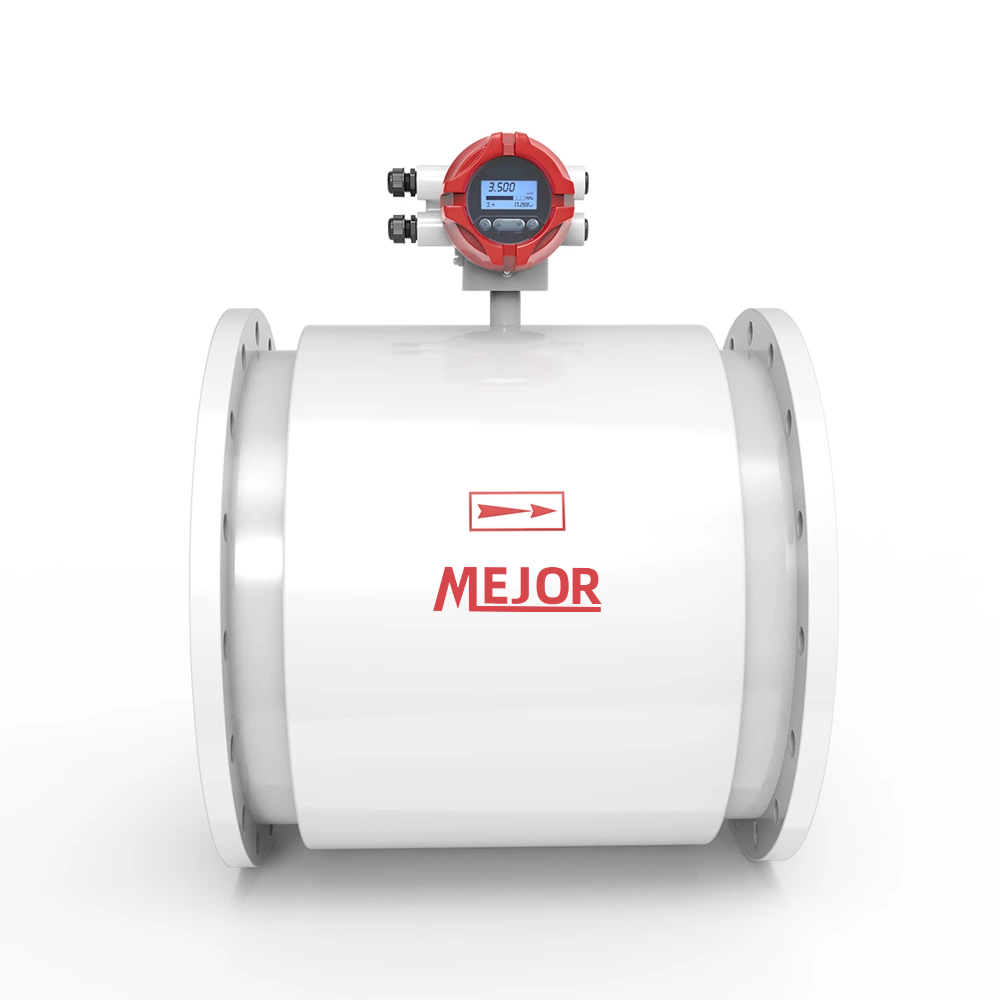

MEJ-LDG Carbon Steel Body Electromagnetic Flow Meter

MEJ-LDG Carbon steel body electromagnetic flow meter

Product Information

MEJ-LDG Carbon Steel Body Electromagnetic Flow Meter

Pipe diameter: DN15~DN1000
Accuracy: ±0.5%(Flow speed > 1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Turndown ratio: 1:100
Power supply: 100-240VAC，50/60Hz; 22-26VDC
Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops

MEJ-LDG Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer.

Specifications

Product	Electromagnetic flow meter
Model	MEJ-LDG
Diameter nominal	DN15~DN1200
Nominal pressure	DN15 – DN250, PN ≤1.6MPa
	DN300 – DN1000, PN ≤1.0MPa
	DN1200, PN ≤0.6 MPa
	Higher pressure can be customized
Accuracy	±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s)
Repetitiveness	0.16%
Liner material	Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
Electrode material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature	Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃
Power supply	85-245VAC，50/60Hz, 22VDC-26VDC

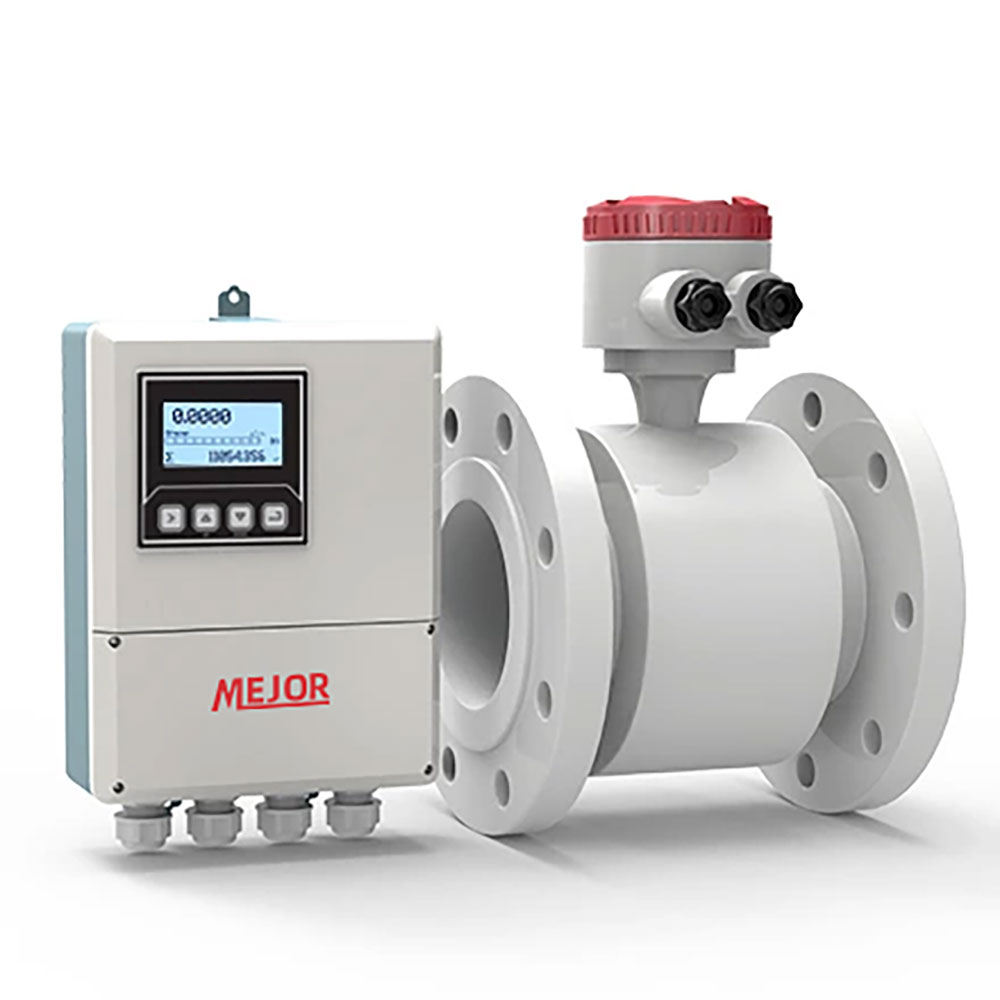

Structure type	Compact type, Remote type
Ingress protection	IP65, IP68(remote type only)
Product standard	JB/T 9248-2015

MEJ-LDG

Carbon Steel Body
Electromagnetic Flow Meter

Can’t Decide? Talk to an Expert?
Have questions or would you like to speak
with an Instrument expert?

FAQs

1. Do you have a minimum order quantity?

Most products have no MOQ limit. For some special products, we will have requirements. For the products you need, you can contact us for confirmation.

2. Are Mejor products customizable to specific requirements?

Yes, Mejor products can be customized to specific requirements, including signal outputs, electrical connections, mounting options, and physical enclosures and so on. We capable to develop instruments tailored to your specific requirements of your special applications.

3. Can Mejor provide technical support and assistance during the installation and operation of its products?

Yes, Mejor provides technical support and assistance during the installation and operation of its products. We understand that customers may require guidance or assistance at various stages of the product lifecycle. And our technical support team is available to answer customer inquiries, provide instructions u0026amp; troubleshooting assistance, and address any technical issues that may arise. Customers can reach out us through emails, phones, or online chat. For after-sales issues, we will response within 1 hour and offer you satisfactory solutions.
