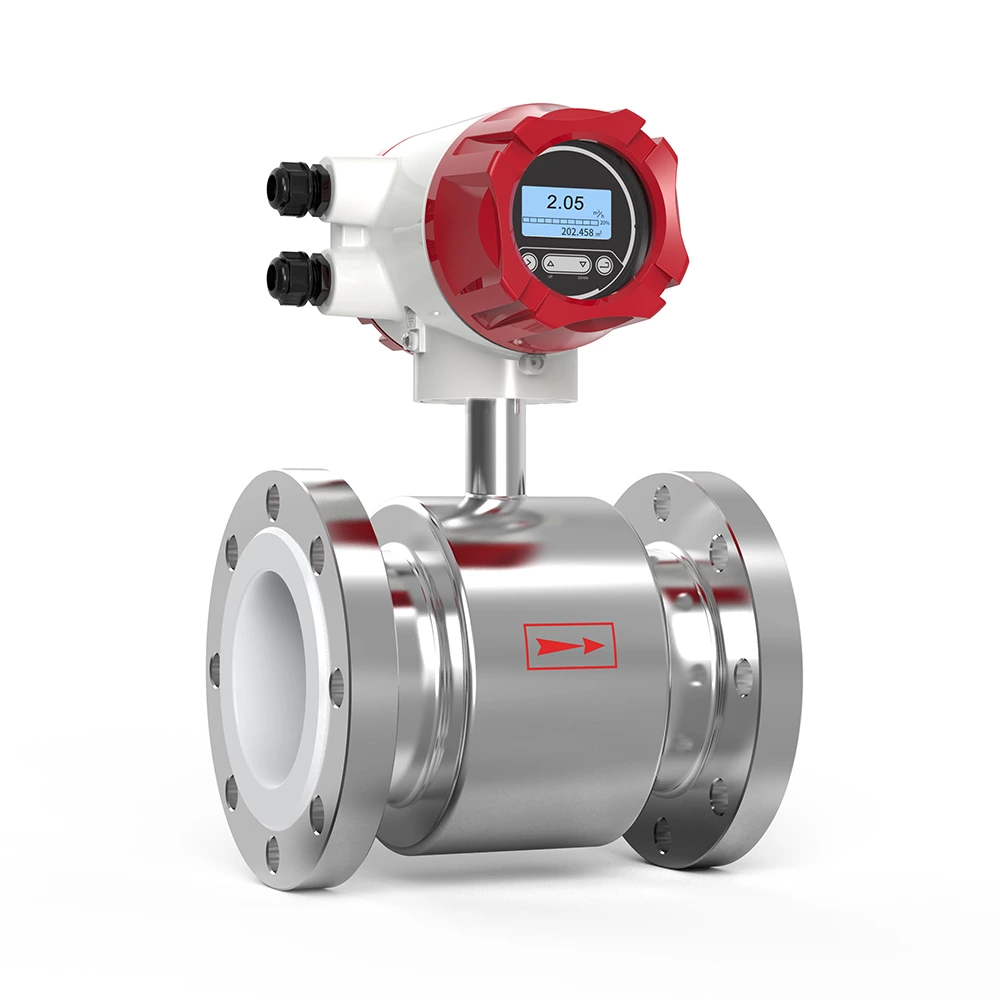

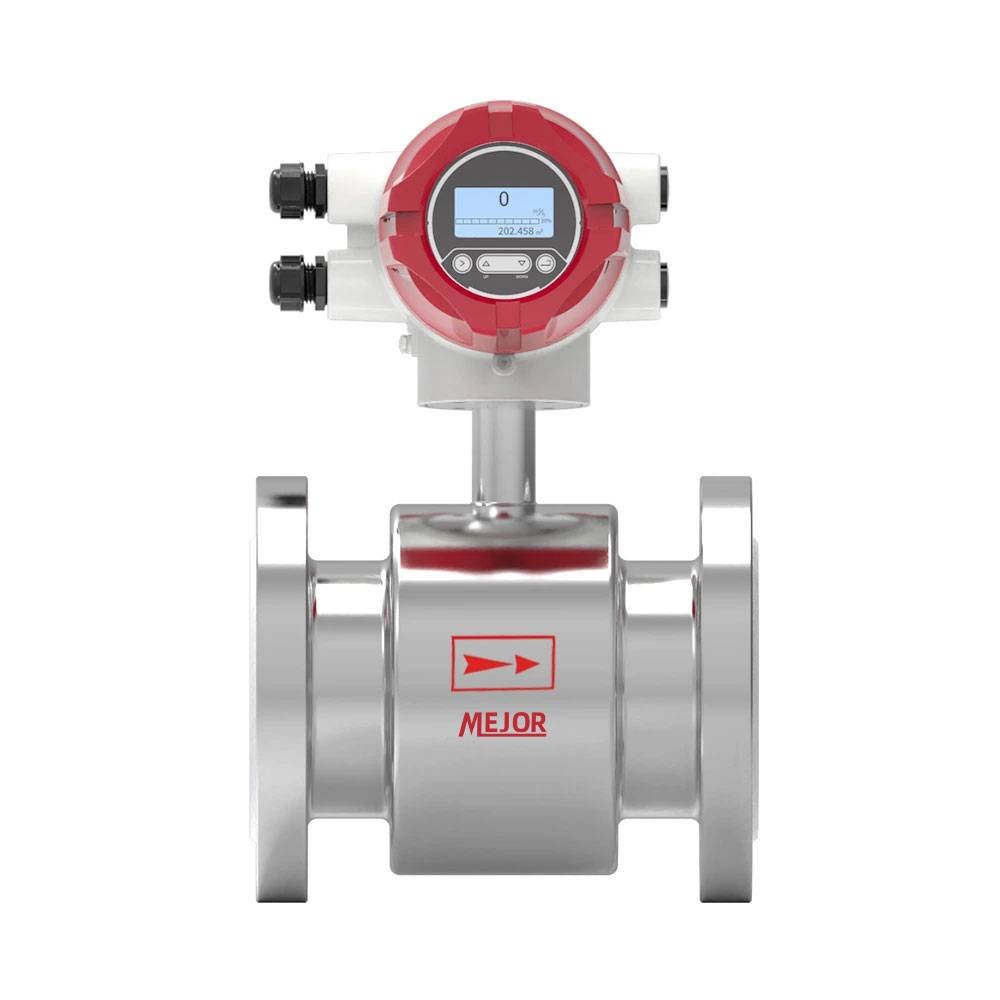

MEJ-LDG Stainless Steel Body Electromagnetic Flowmeter

MEJ-LDG Stainless steel body electromagnetic flowmeter

Product Information

MEJ-LDG Stainless Steel Body Electromagnetic Flowmeter

Accuracy: ±0.5%，±2mm/s(flowrate<1m/s)
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Flange: ANSI/JIS/DIN DN10…600
Ingress protection: IP65

Advantages of stainless steel valve body electromagnetic flowmeter:1.Strong corrosion resistance: Stainless steel material is acid and alkali resistant, corrosion-resistant, and suitable for various complex media.2.Reliable accuracy: Accurate and stable measurement with good repeatability, capable of accurately measuring fluid flow rate.3.Long lifespan: sturdy structure, wear-resistant and durable, reducing maintenance and replacement frequency.4.No pressure loss: No mechanical moving parts, no pressure loss, energy-saving and reducing failures.5.Quick response: able to quickly perceive changes in traffic, output data in real-time, and facilitate monitoring and control.

Specifications

Product	Electromagnetic flow meter
Model	MEJ-LDG
Diameter nominal	DN15~DN1000
Nominal pressure	0.6~4.0MPa
Accuracy	±0.5%，±2mm/s(flowrate<1m/s)
Liner material	PFA,F46,Neoprene,PTFE,FEP
Electrode material	Stainless steel SUS316L, Hastelloy C, Titanium,
	Tantalum Platinum-iridium
Medium temperature	Integral type: -10℃~80℃
	Split type: -25℃~180℃
Ambient Temperature	-10℃~60℃
Electrical conductivity	Water 20μS/cm other medium 5μS/cm
Structure type	Tegral type, split type
Ingress protection	IP65
Product standard	JB/T 9248-1999 Electormagnetic Flowmeter

MEJ-LDG

Stainless Steel Body
Electromagnetic Flowmeter

Can’t Decide? Talk to an Expert?
Have questions or would you like to speak
with an Instrument expert?

FAQs

1. Do you have a minimum order quantity?

Most products have no MOQ limit. For some special products, we will have requirements. For the products you need, you can contact us for confirmation.

2. Are Mejor products customizable to specific requirements?

Yes, Mejor products can be customized to specific requirements, including signal outputs, electrical connections, mounting options, and physical enclosures and so on. We capable to develop instruments tailored to your specific requirements of your special applications.

3. Can Mejor provide technical support and assistance during the installation and operation of its products?

Yes, Mejor provides technical support and assistance during the installation and operation of its products. We understand that customers may require guidance or assistance at various stages of the product lifecycle. And our technical support team is available to answer customer inquiries, provide instructions u0026amp; troubleshooting assistance, and address any technical issues that may arise. Customers can reach out us through emails, phones, or online chat. For after-sales issues, we will response within 1 hour and offer you satisfactory solutions.
