It’s me, your friendly neighbourhood drill rod guy from the factory. You know, the guy who spends way too much time looking up thread gauges and torque specs.

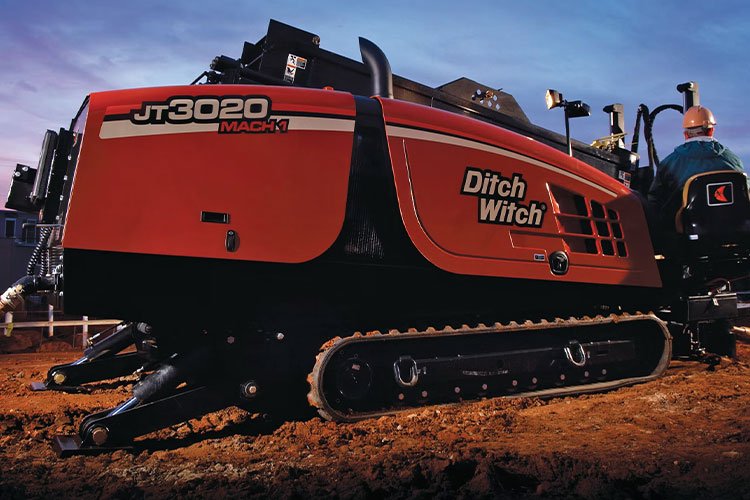

So the other day, I get a call from a customer. He’s got a Ditch Witch JT3020, been running it for years, and he’s mad. Says his new rods keep jamming in the spindle. “These rods are junk,” he says to me.

I ask him what he’s doing with it. A photo is sent to me.

Yep – wrong thread diameter. Classic.

That’s when it hit me – not with a lightbulb moment, but more like a dull drill head to the shin. Most people just assume if a rod looks kinda similar and screws in halfway, it’s good to go. No. NOPE.

Allow me to spare you some swearing.

The ‘Wait, they’re not all the same?’ moment

” I have been selling HDD tooling for 5 years. And I remember my first week on the job when a veteran operator told me, “Kid, the rod is the cheapest part of a bad day.” I didn’t understand it then.

Then I watched a JT922 twist a rod into a pretzel because someone used a generic “will fit” rod. The threads galled. The torque spiked and bam – eight hours of fishing.

So here’s what I learned, the hard way, so you don’t have to.

Ditch Witch JT Series – the finicky drill rod muncher

Ditch Witch makes good rigs. I’m not going to claim our rods are the only ones that work – that’s just sales garbage. But the JT series? They have opinions.

The majority of JT machines ranging from the smallest JT5 to the JT100 use either Ditch Witch proprietary thread form (sometimes referred to as “DWT” or similar) or a modified API regress profile depending on year/model.

Here’s the kicker: That thread is just different enough from your standard API 2-3/8” Reg to screw you over.

It will start to thread by hand. That’s OK. Then you apply torque and it cross threads, or worse, “torques up” too early. Meaning the shoulder isn’t fully seated but the threads are already binding. Then two pulls later you have a cracked box end.

The “aha” that took me a weekend

I once helped a friend with his JT3020. He swore he had genuine DW rods. I had a closer look. The rods were in a box marked JT compatible. No Brand. 1.0 out of 5 stars. No spec sheet.

We pulled a 400-foot bore. Half way through the connection started leaking mud. By the time we got it out the threads were all buttered up. The rods were ground to the wrong flank angle — just one degree off, but that’s all it takes.

From that day, I created a cheat sheet. And I’ll give you the short version.

What really works with JT rigs

JT5, JT10, JT20 – Most of these run the smaller DW thread (at least in the aftermarket world, this is often called “DW-1”). Threads straight, not tapered. You want a rod with a flat bottom thread form, not a V thread like an API pin.

JT30 series (3020, 3025 etc) – This is the weird zone. Some early models have a tapered thread that looks like API 2-3/8” IF but is not. The newer ones use DW’s own design again. Always, and I mean always, check your existing rod’s thread with a gauge. Or shoot me a picture. In ten I’ll tell you.

JT40 / JT60 / JT80 / JT100 – Bigger machines. Still DW specific. Usually run a heavier 2-7/8” or 3-1/2” thread. Don’t try to stuff an industry standard 2-7/8″ API Reg in there. You will burst the box.

What I wish every JT owner knew.

No need to buy rods from Ditch Witch themselves. But you have to buy rods that specifically say your exact JT model and thread code on them.

And please, for the love of everything holy, don’t trust the guy on Facebook Marketplace selling “universal HDD rods”. Universal is normally “fits nothing well.”

My real talk moment is this

In our factory we make JT compatible rods. I ain’t gonna bang you over the head with a catalogue. Instead, I’ll offer you the same thing I’d offer a buddy at a job site:

Send me a picture of the thread on your current rod (pin end, side view and a shot straight into the box if you can). I’ll specify exactly which spec you need – even if you buy it elsewhere.

Because honestly, the worst thing about my week is hearing someone say, “I wish I’d asked before I bought.

So, yeah.” go check your threads And if you ever ain’t sure just holler.

Happy boring. May your torque be smooth and your pulling eyes intact.
